SmartSlat - unique and easy to install two part steel slatting & louver system use our steel slats for fencing, gates, slatting panels, sunrooms, louvres and many more applications.
Manufactured by Gramline. Stockists Australia wide.

View SmartSlat in action:

Click on the images below to see examples of how SmartSlat can be used.

SMARTSLAT INSTALLATION GUIDE

End Post Incremental Assembly

Click on images to open detail drawings in bigger format
installation of end post

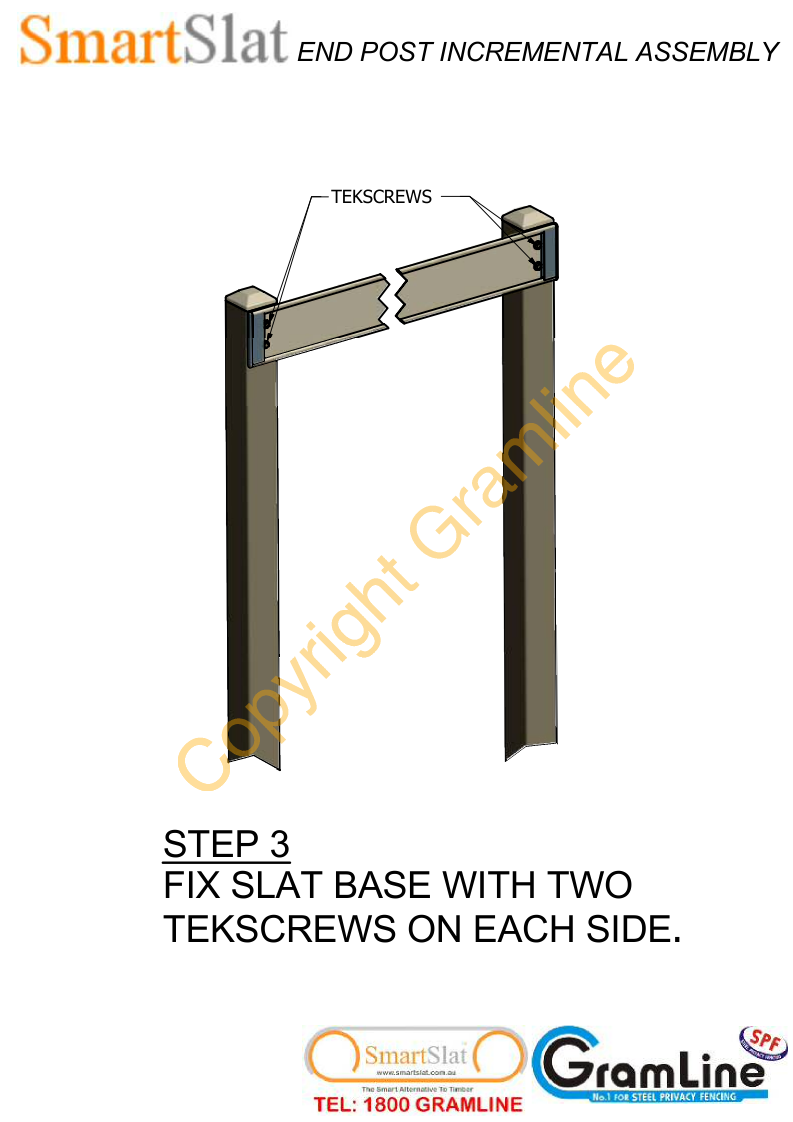

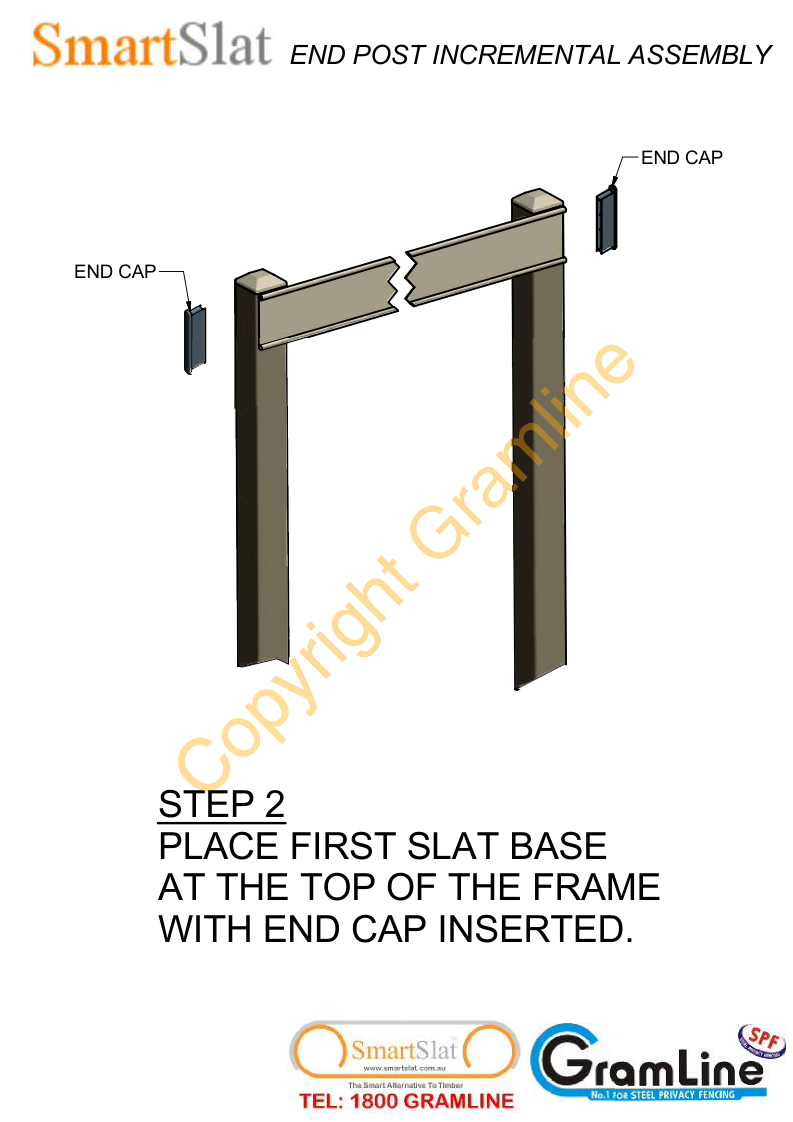

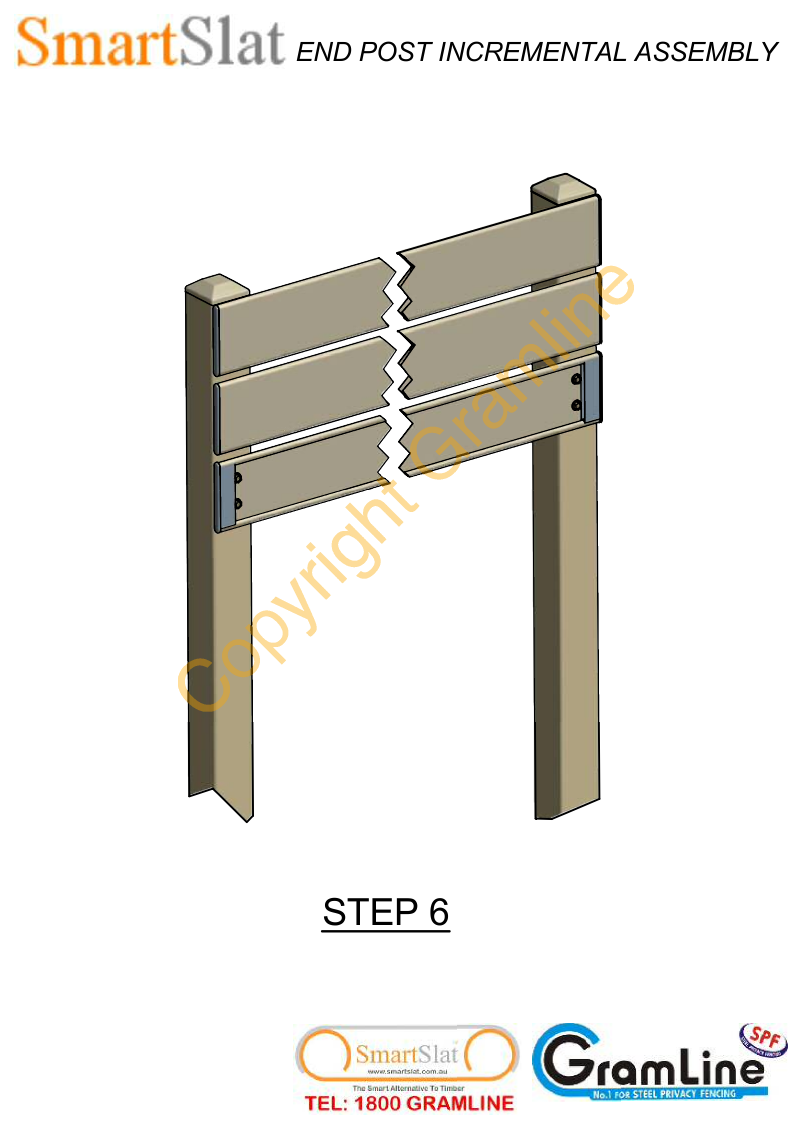

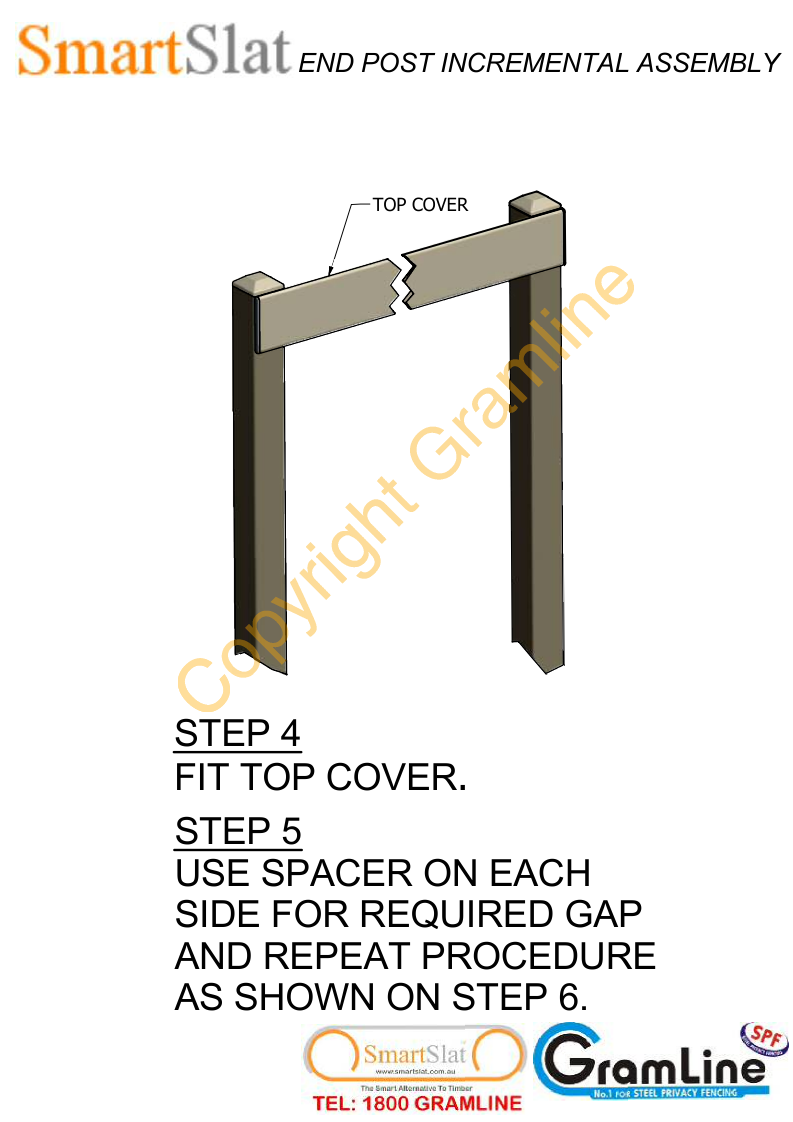

Step 1 Step 2 Step 3 Step 4 and 5 Step 6

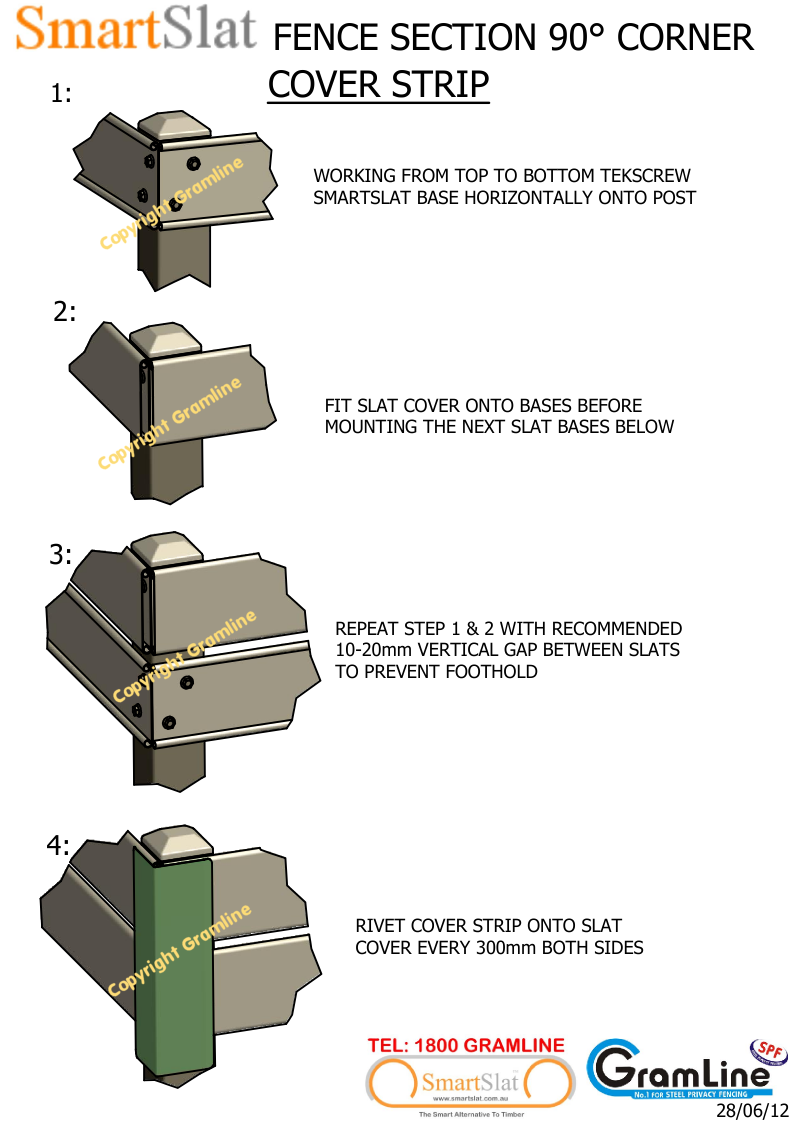

Fence Section 90 degree Corner End Cap

Click on image to open detail drawings in bigger format

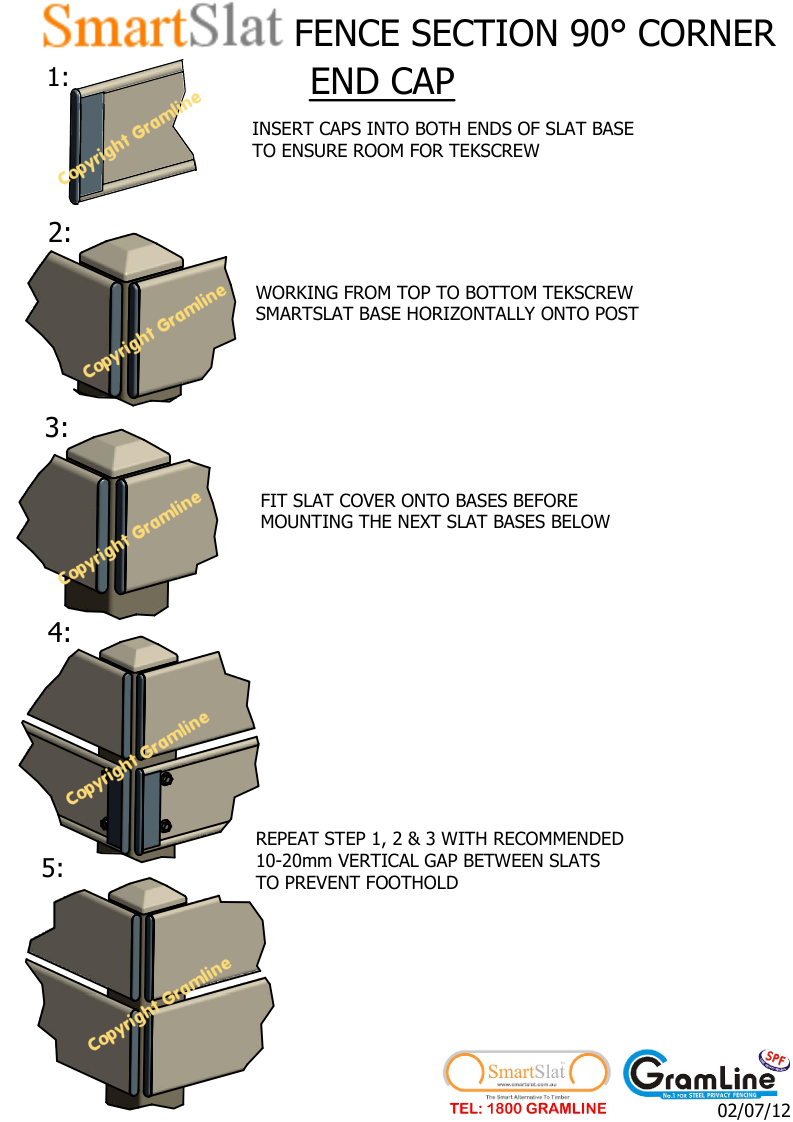

Fence Section 90 degree Corner End Cap

Click on image to open detail drawings in bigger format

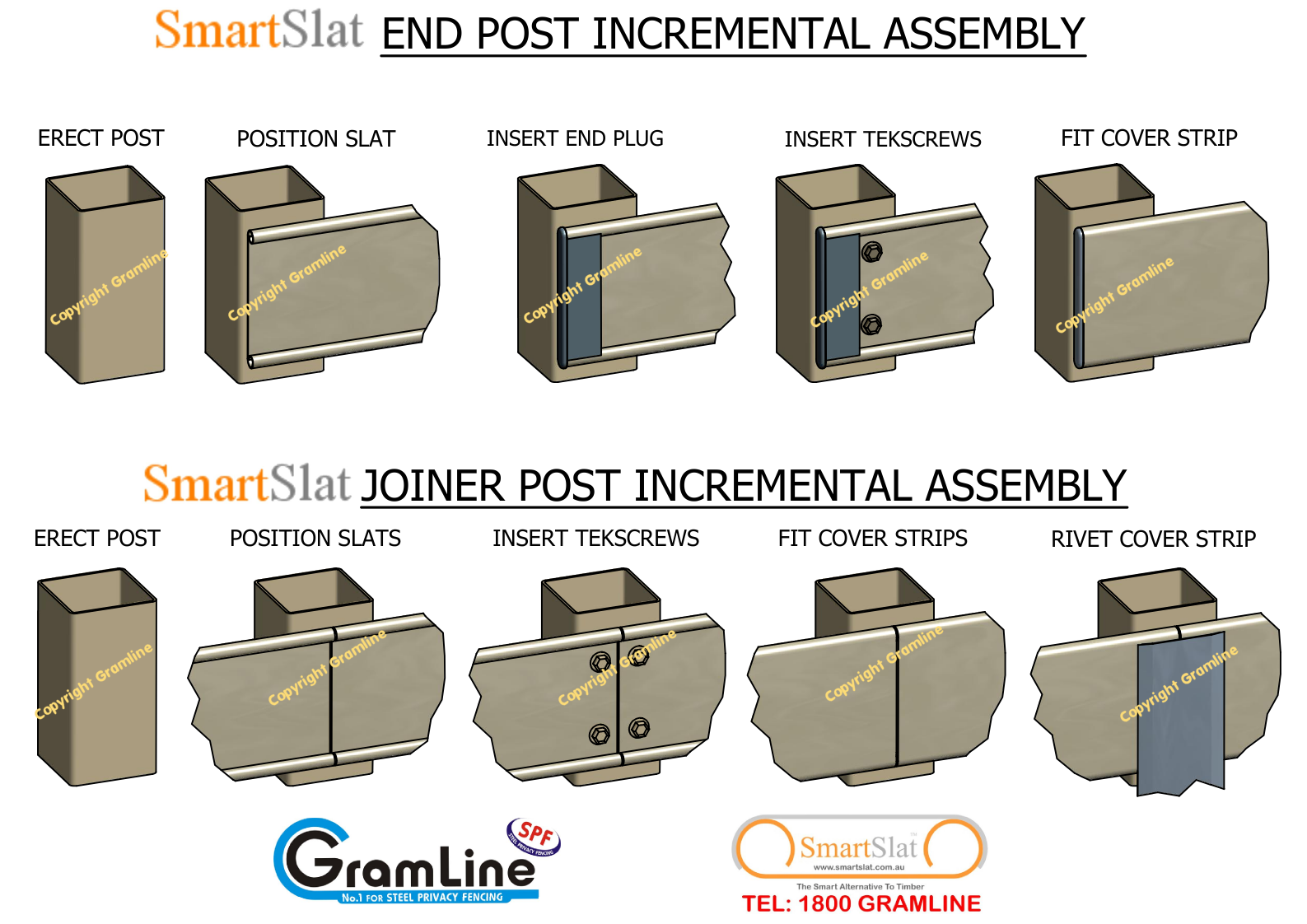

Smartslat Post Installation Sheet

Click on image to open detail drawings in bigger format
