SmartSlat
The Smart Alternative to Timber
SmartSlat - unique and easy to install two part steel slatting & louver system use our steel slats for fencing, gates, slatting panels, sunrooms, louvres and many more applications.
Manufactured by Gramline. Stockists Australia wide.
Manufactured by Gramline. Stockists Australia wide.
How to use SmartSlat:
View SmartSlat in action:
Click on the images below to see examples of how SmartSlat can be used.
How To Fasten

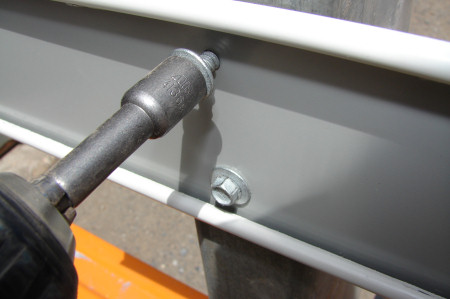

- Screw the Smartslat Base to the post or gate frame (depending on the application) using self drilling screws as shown below
- Note: Class 3 Coated fasteners are recommended as these have greater protection against weathering
- Two self drilling screws should be used on the base wherever there is a post or frame (depending on the application)

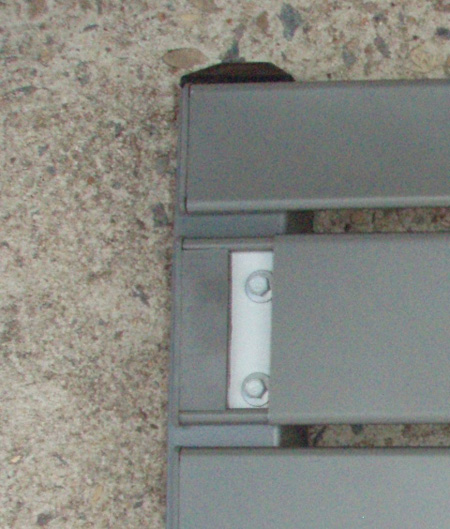

- Once you have fastened the base slat to the gate or frame, clip the end caps on both ends.

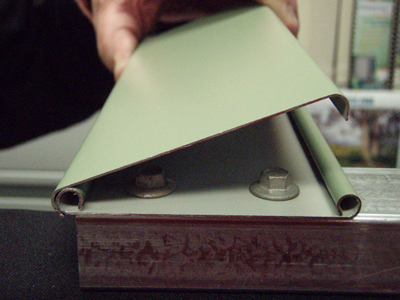

- Simply clip the Smartslat cover onto the base. (click to view how to use smartslat tool)

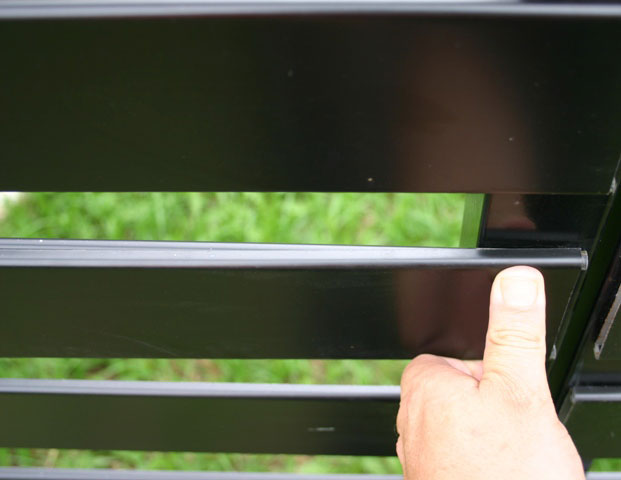

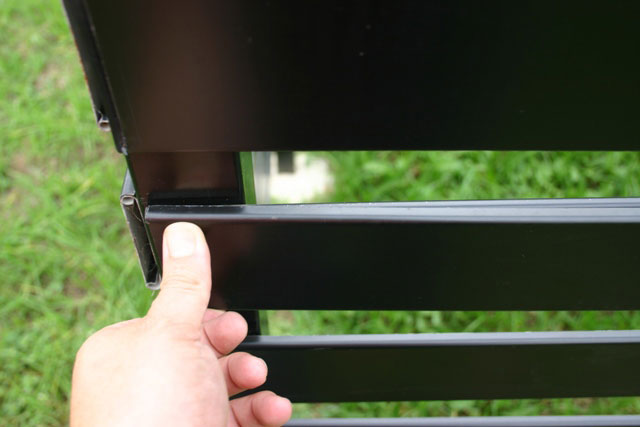

- Push the cover onto the base at each end at the mounting points
